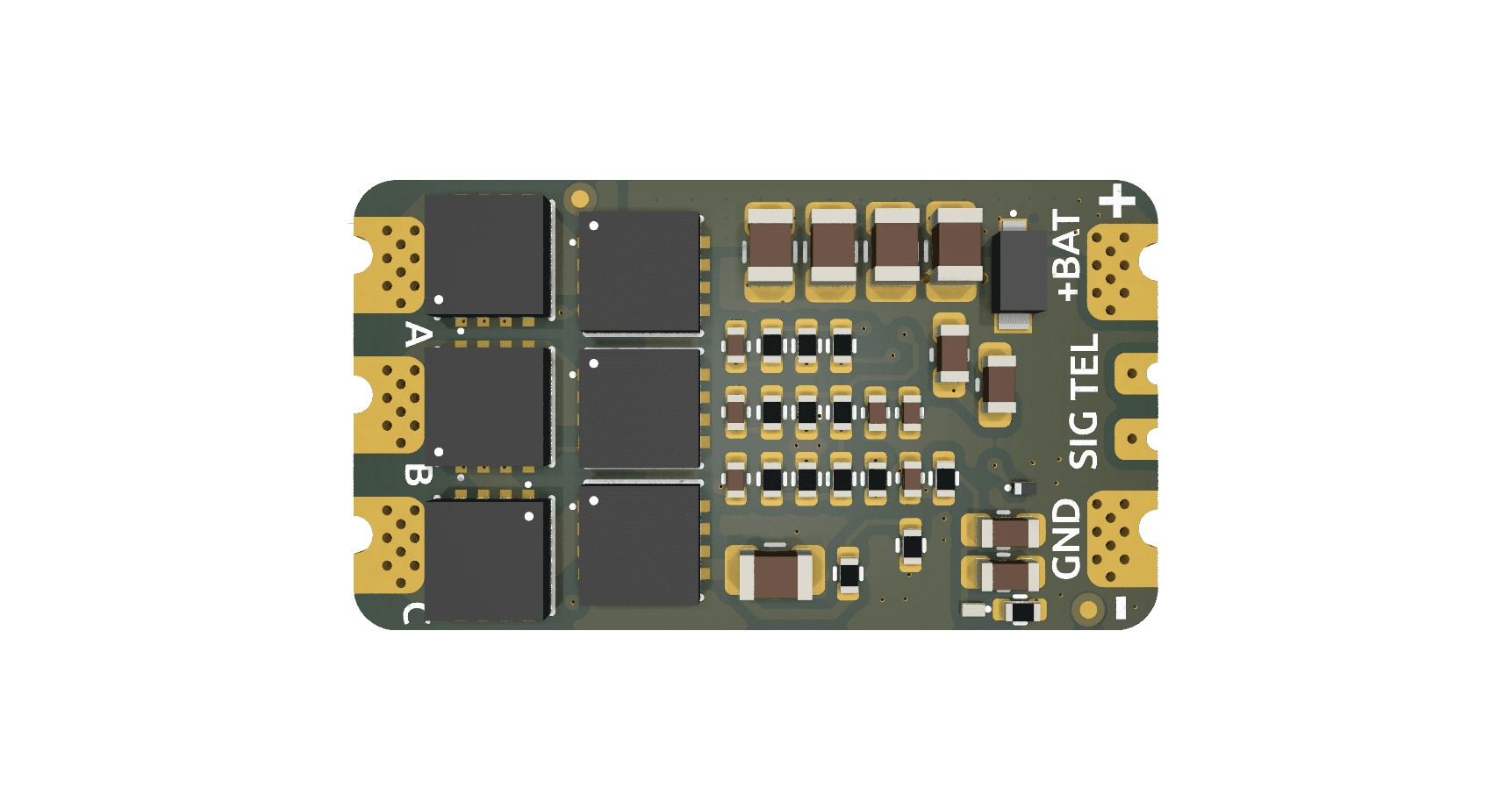

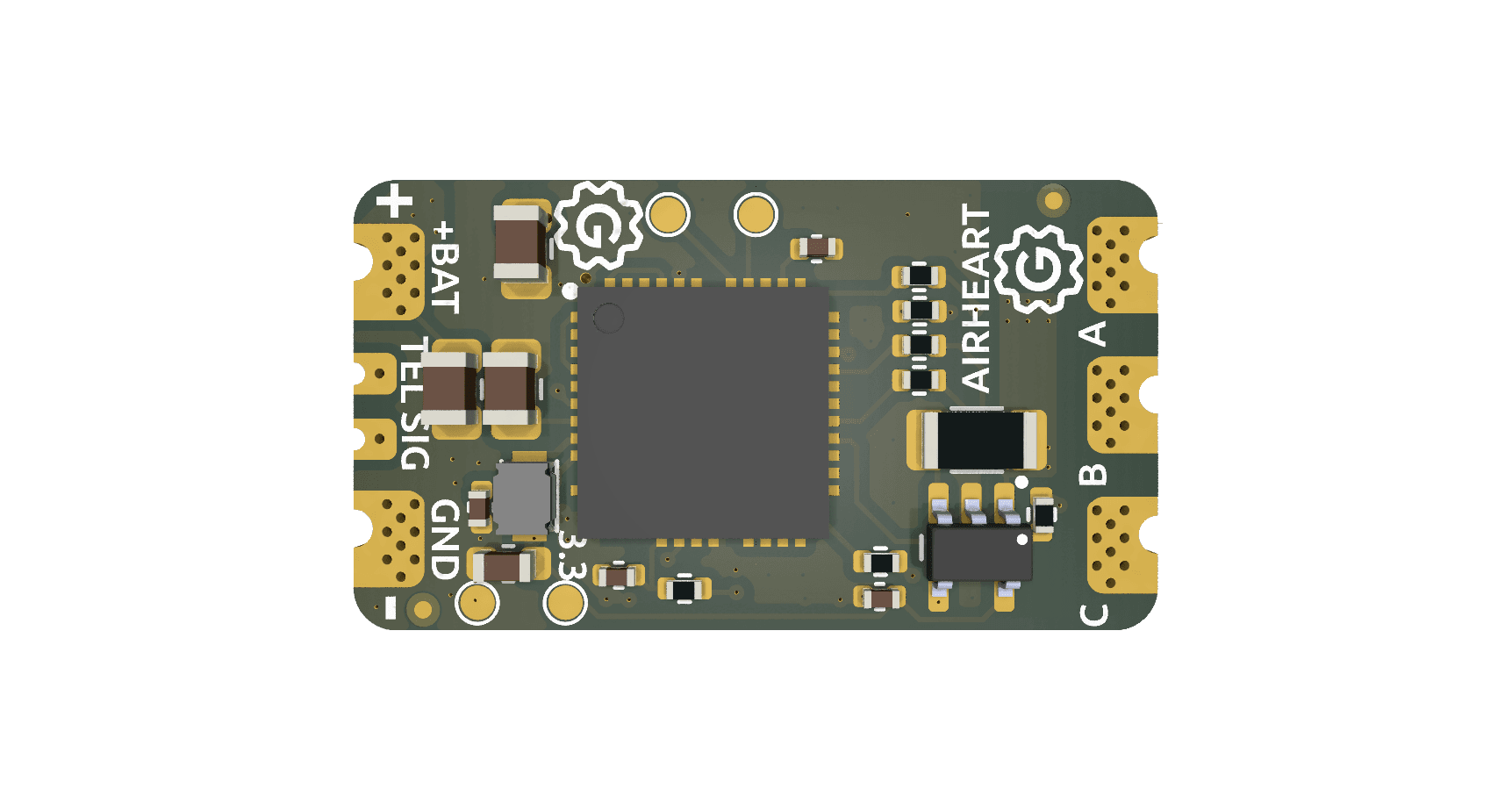

AirHeart Single ESC
Designed for precise motor control in drones and robotics, AirHeart Single delivers exceptional performance and reliability for any project.
New generation of high-performance ESCs for drones and robotics. Using Highly integrated motor controller ICs, AirHeart Single delivers precise control and exceptional performance in a compact form factor. With support for latest firmware stacks such as AM32.
Key Features
- Single BLDC motor control
- High power Infineon MOSFETS
- AM32 open source firmware support
- Telemetry support
- Wide battery input range 3–10S LiPo support
- Small form factor
- Made in Belgium 🇧🇪
Specifications
- Highly integrated motor controller
- 75A up to 10s (42V)
- Build together with AM32 open source community
- Low loss feedback current system
- Telemetry support
- 10-42V battery input range
- Auto-Detect Protocol
- NDAA-compliant

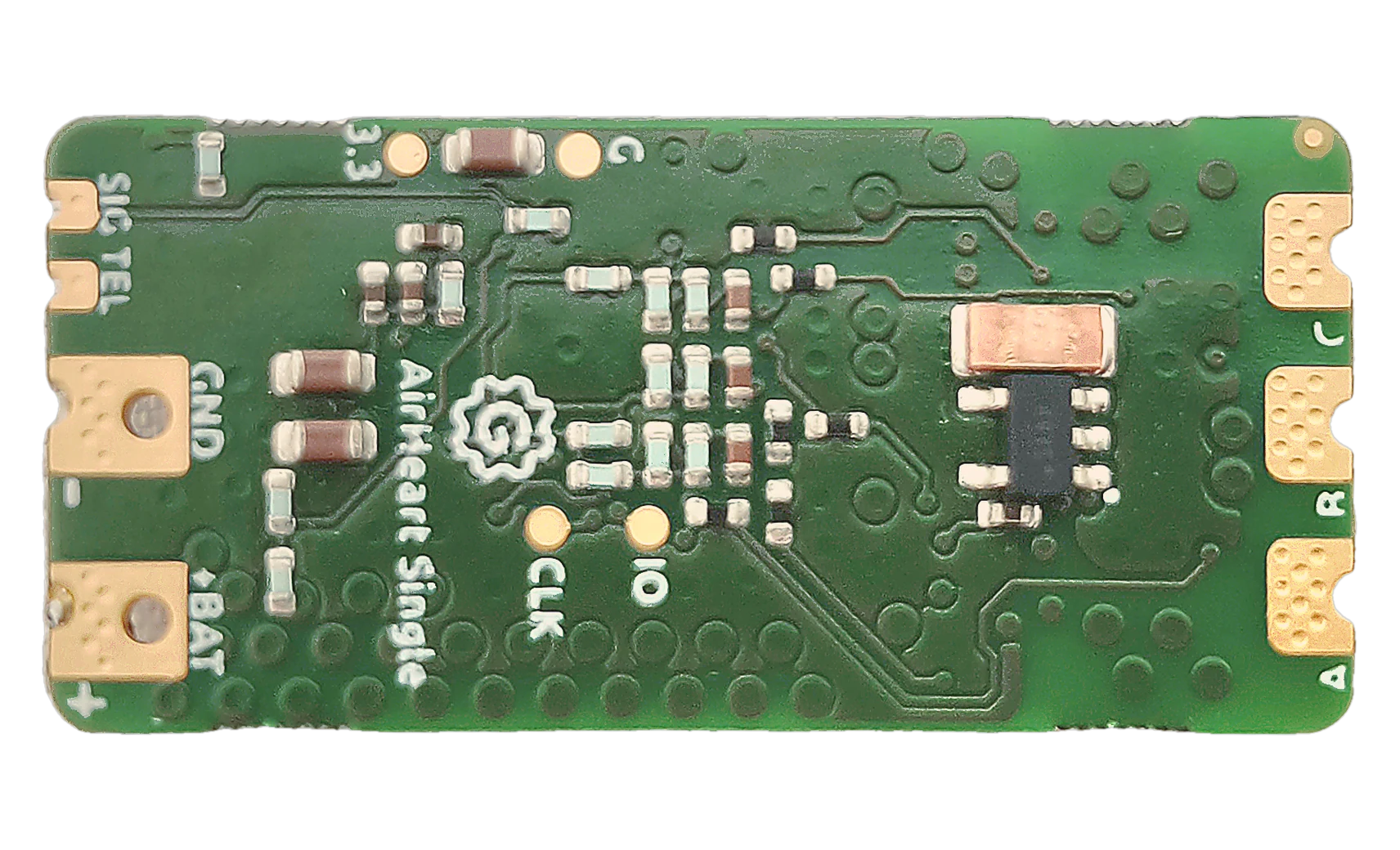

- Easy and symmetric access to SWD pads
All-in-one brushless motor controller that features an embedded STM32G0 MCU. Its compact integration enhances thermal performance, allows for smaller designs, and delivers superior efficiency compared to legacy discrete solutions.
The Infineon MOSFETs are designed for next-generation UAV ESCs, they combine ultra-low conduction losses with high-speed switching to ensure maximum efficiency, extended flight time, and robust thermal performance in demanding aerial applications.
By integrating the ultra-low resistance current sense resistor at the MOSFET source, our ESC design minimizes power loss and heat generation—four times lower than standard solutions. This not only improves thermal efficiency and responsiveness but also enables accurate current sensing up to 75A, surpassing the limitations of traditional designs and unlocking higher performance for demanding UAV applications.

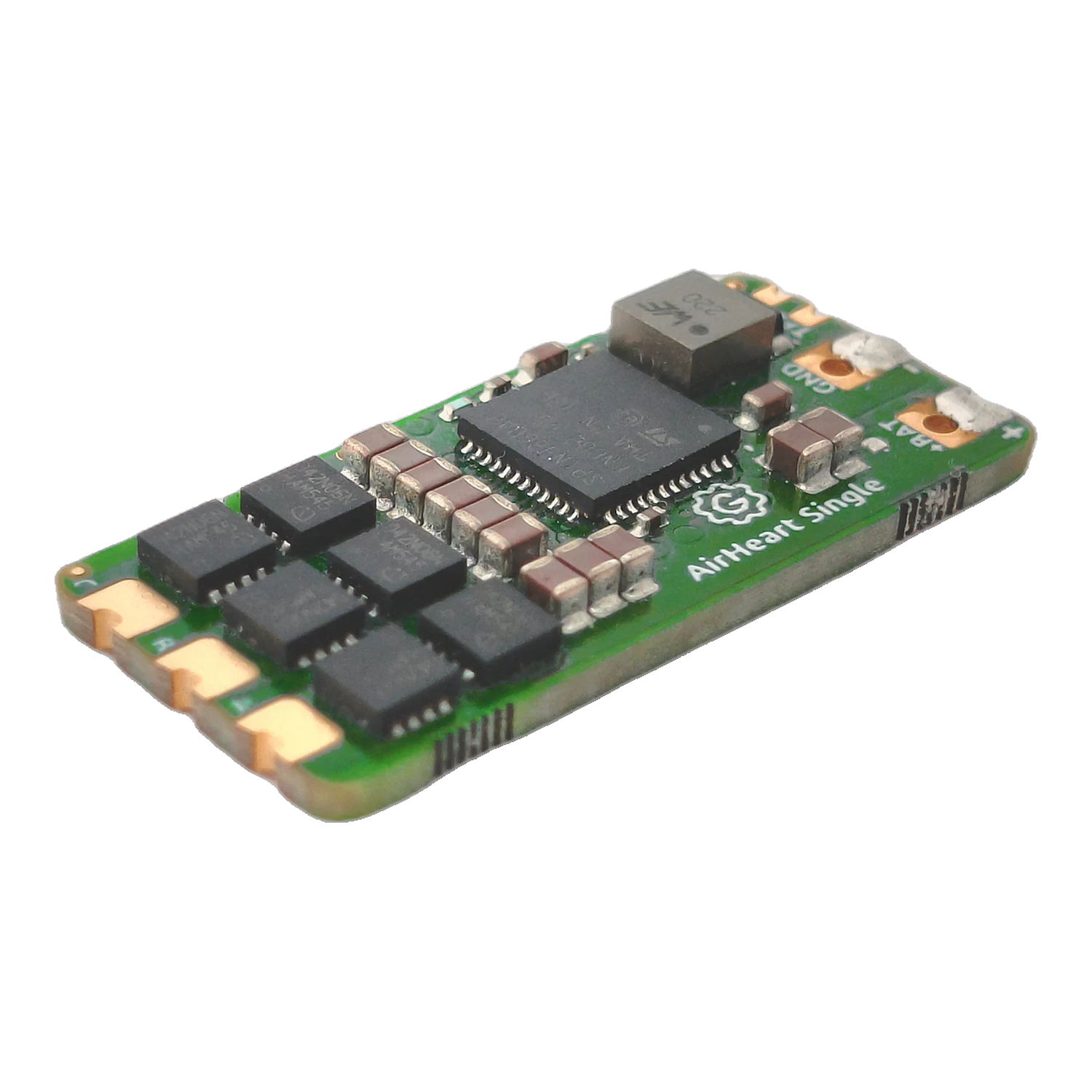

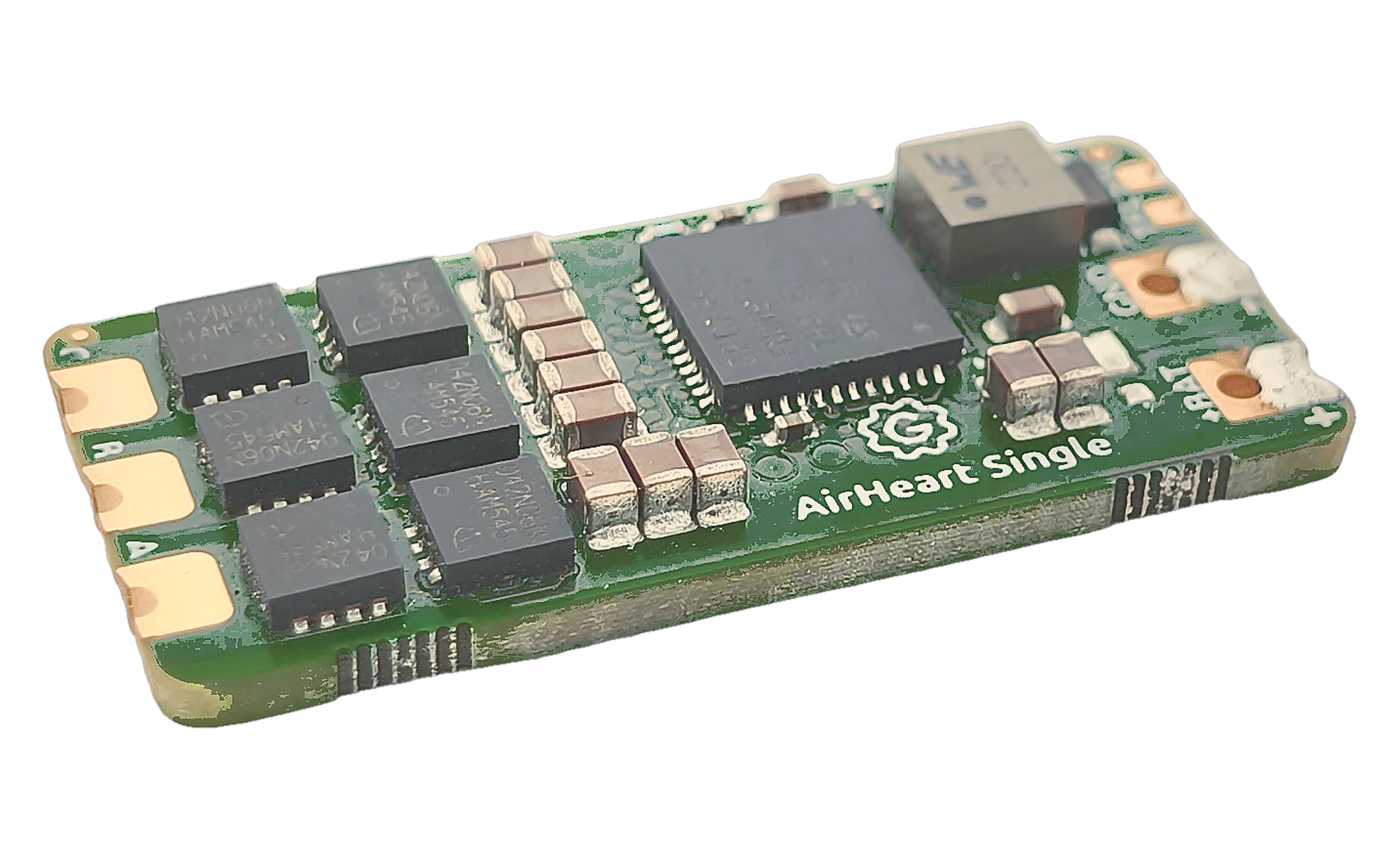

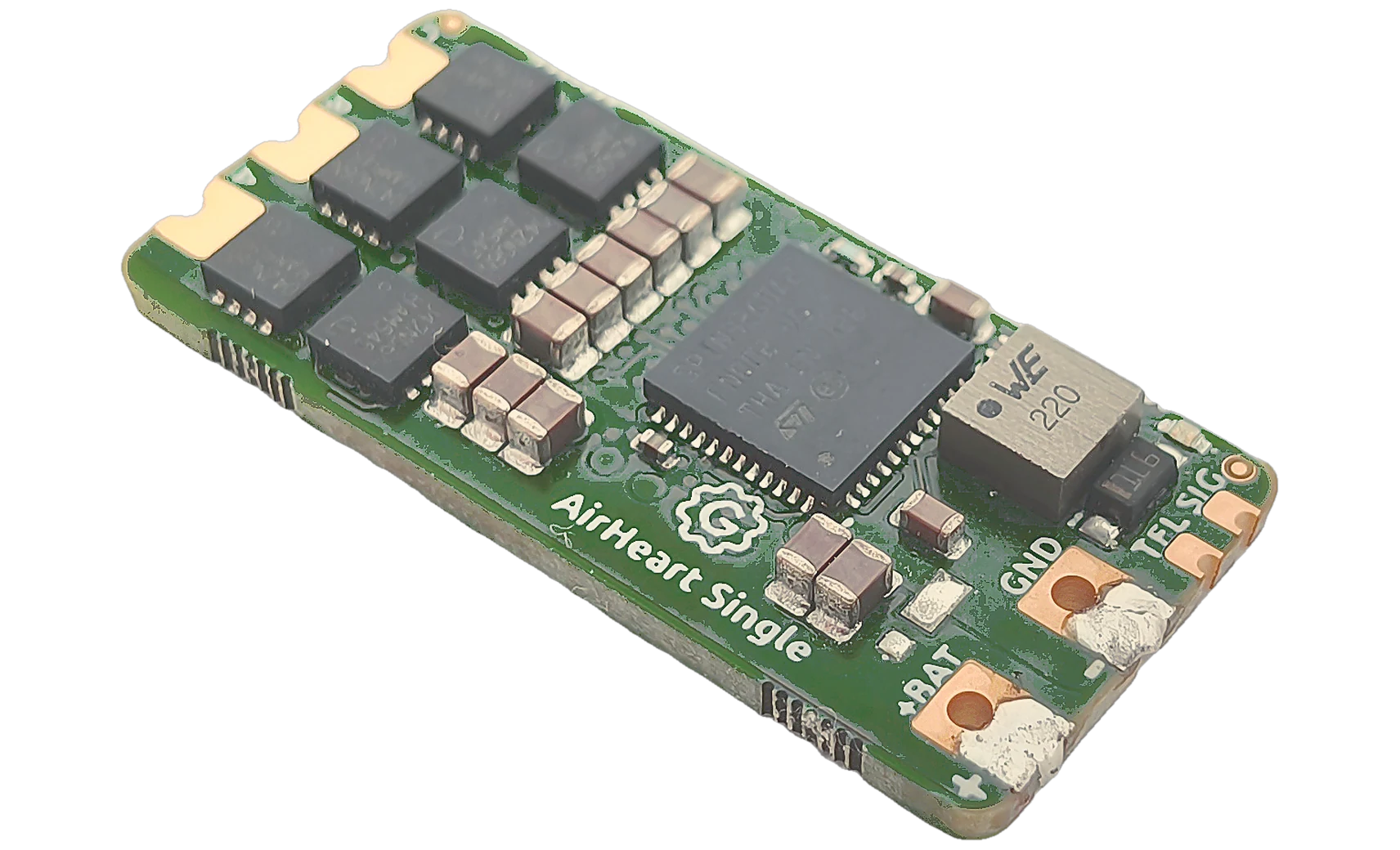

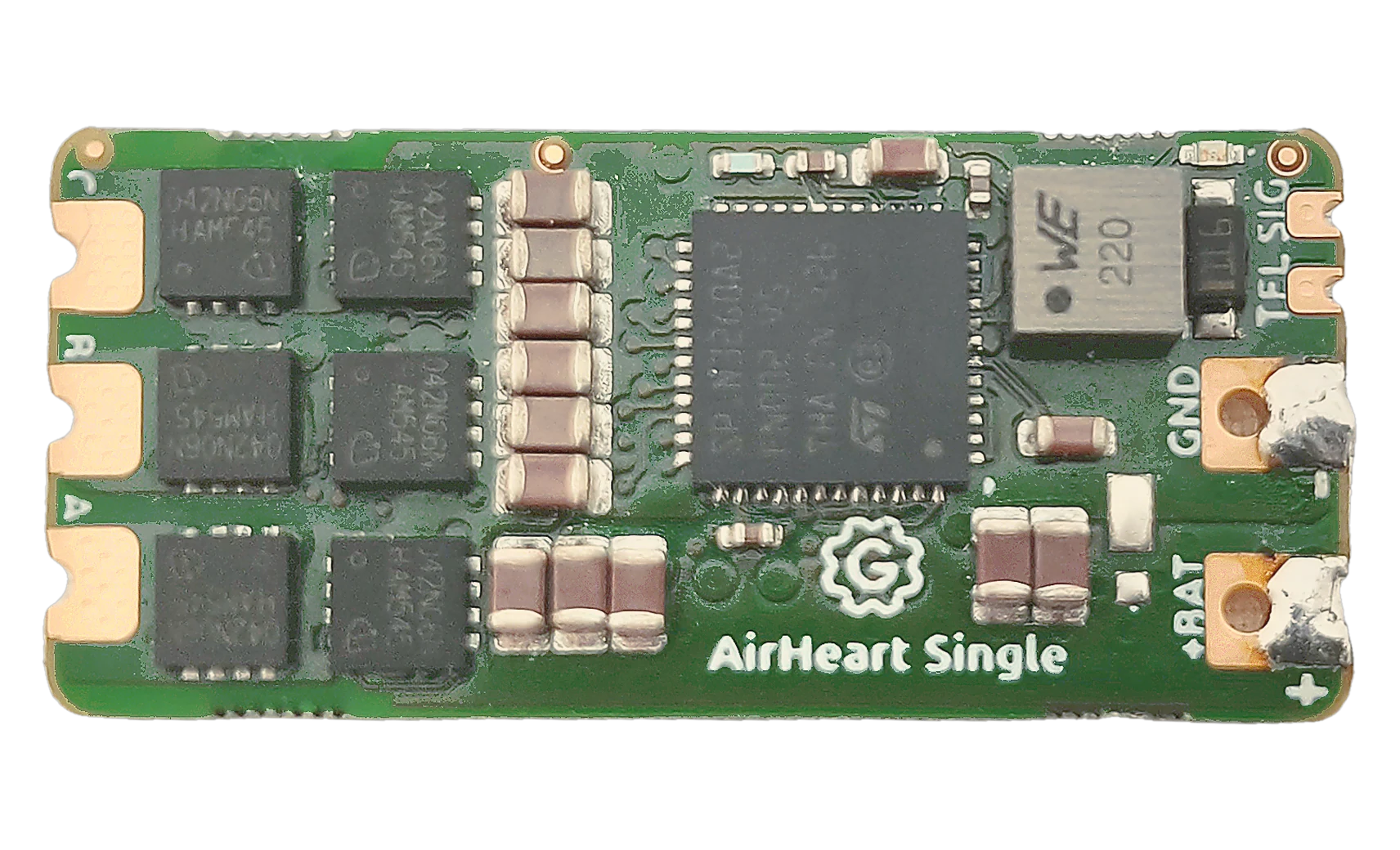

Pictures
For more information, email us at info@takeyourgear.com
