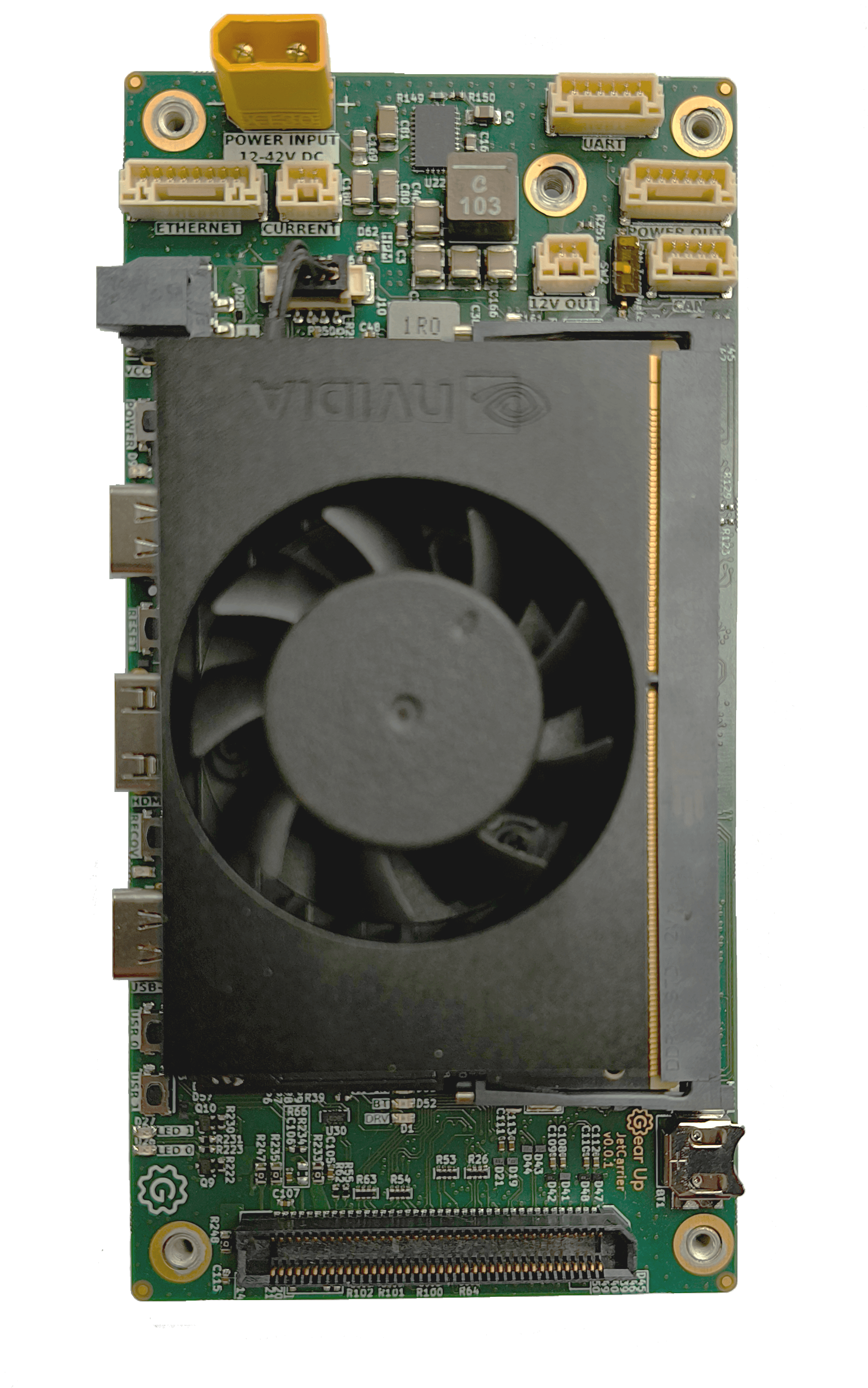

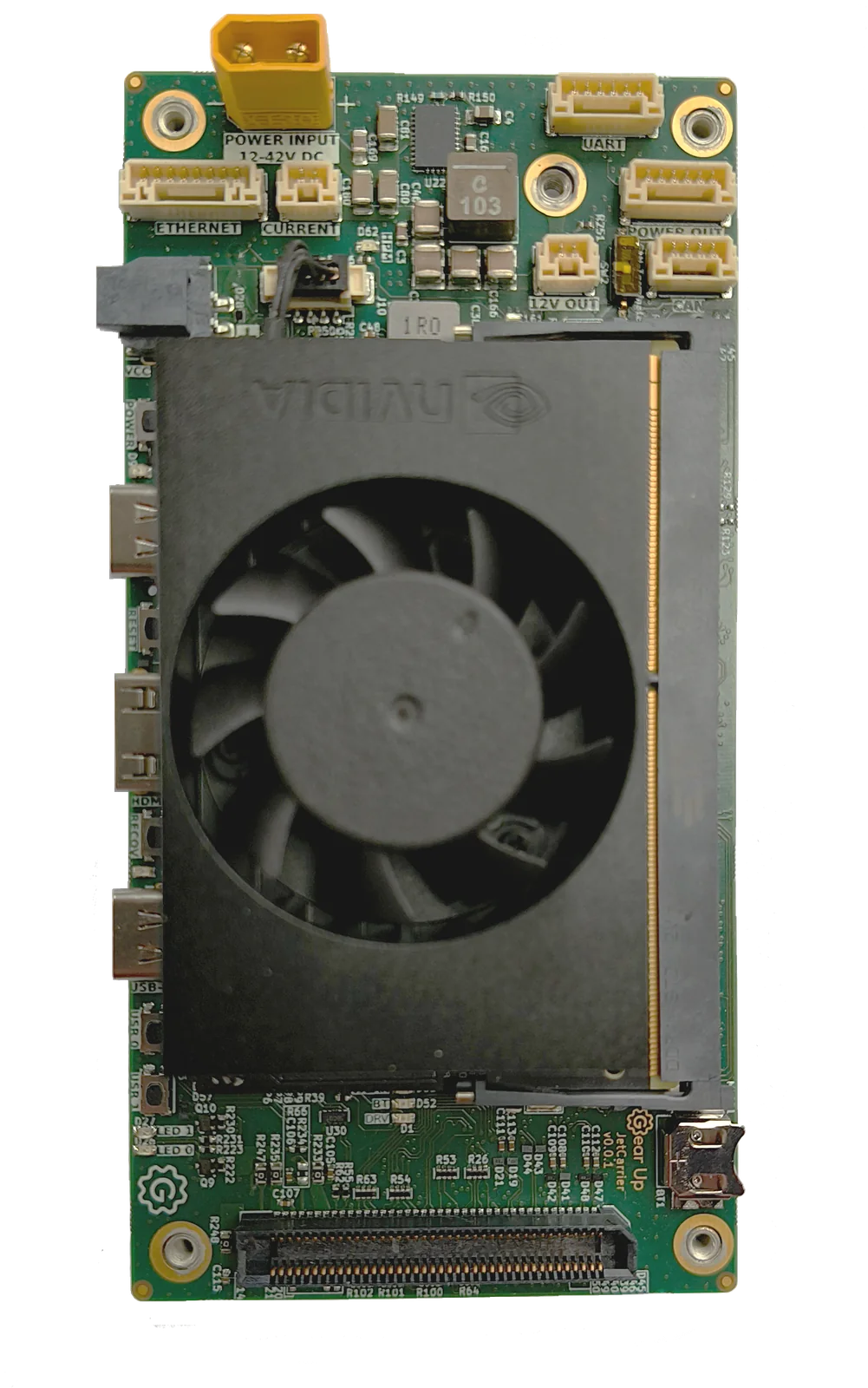

JetCarrier, AI mission computer for drones and robotics
JetCarrier is a ruggedized AI mission computer designed for drones and robotics. Powered by Nvidia's Jetson platform, it delivers high-performance edge computing for autonomous navigation, computer vision, and AI applications.
Designed for AI-powered drones and robotics, JetCarrier combines the power of Nvidia's Jetson platform with seamless UAV integration. It has integrated power supply, so you can connect it directly to your battery. By offering PixHawk standard connectors for UART, CAN, POWER and Ethernet. Connection to the flight controller is plug-and-play.
In addition, you can add up to two M.2 cards, for example to add 5G, SDR or even SSD. We also have two camera connectors, so you can easily add up to 4 CSI cameras for computer vision applications. With 2x USB 3.0, 1x USB 2.0, and an expansion port, you have all options for connecting peripherals and sensors. JetCarrier is built to perform reliably in demanding environments where precision and robustness are non-negotiable. This combined with the extremely powerful Nvidia Jetson Orin Nano or Orin NX makes it the ideal choice for edge AI applications in drones and robotics.
Key Features
- NVIDIA Jetson Orin Nano and Jetson Orin NX System-on-Modules
- PixHawk standard connectors
- Integrated power supply, 12-42V DC
- Very small form factor
- Made in Belgium 🇧🇪
Specifications
- Two USB-C PD
- Two M.2 slots
- Integrated power supply
- UART, CAN, Ethernet, I2C, USB
- Four CSI camera
- Very powerfull AI capability: 20 - 157 TOPS
JetCarrier is the ideal choice for edge AI applications in drones and robotics. Whether you're developing autonomous navigation, computer vision, or AI applications, JetCarrier delivers the performance and reliability you need to bring your projects to life. With JetCarrier, you can unlock the full potential of AI in your drones and robotics projects, enabling new capabilities and applications that were previously out of reach.
All Specifications
- Scale your AI power: 20 - 157 TOPS
- Ethernet on PixHawk connector
- UART and CAN on PixHawk connector
- USB 3.2 10 Gbps with DisplayPort
- Micro HDMI
- two 50pin CSI camera connectors, for up to 4x CSI cameras
- Each CSI data lane has a peak bandwidth of 2.5 Gbps
- 3-10S LiPo Support 10-42V (XT-30)
- Internal power supply, no external power required
- Power supply for 5V and 12V outputs, on PixHawk power connector
- Battery voltage and current connections on PixHawk power connector
- I2C on JST-SH connector
- 30mm (L) x 34mm (W) x 12mm (H)
- Orin module cost: €300 for 20 TOPS and €900 for 157 TOPS
- Real time clock with removable battery
- NDAA compliant
- High quality components
- Best in class software integration
- Ruggedized design
- Made in Belgium 🇧🇪
Pictures
For more information, email us at info@takeyourgear.com
